PRODUCT DETAILS

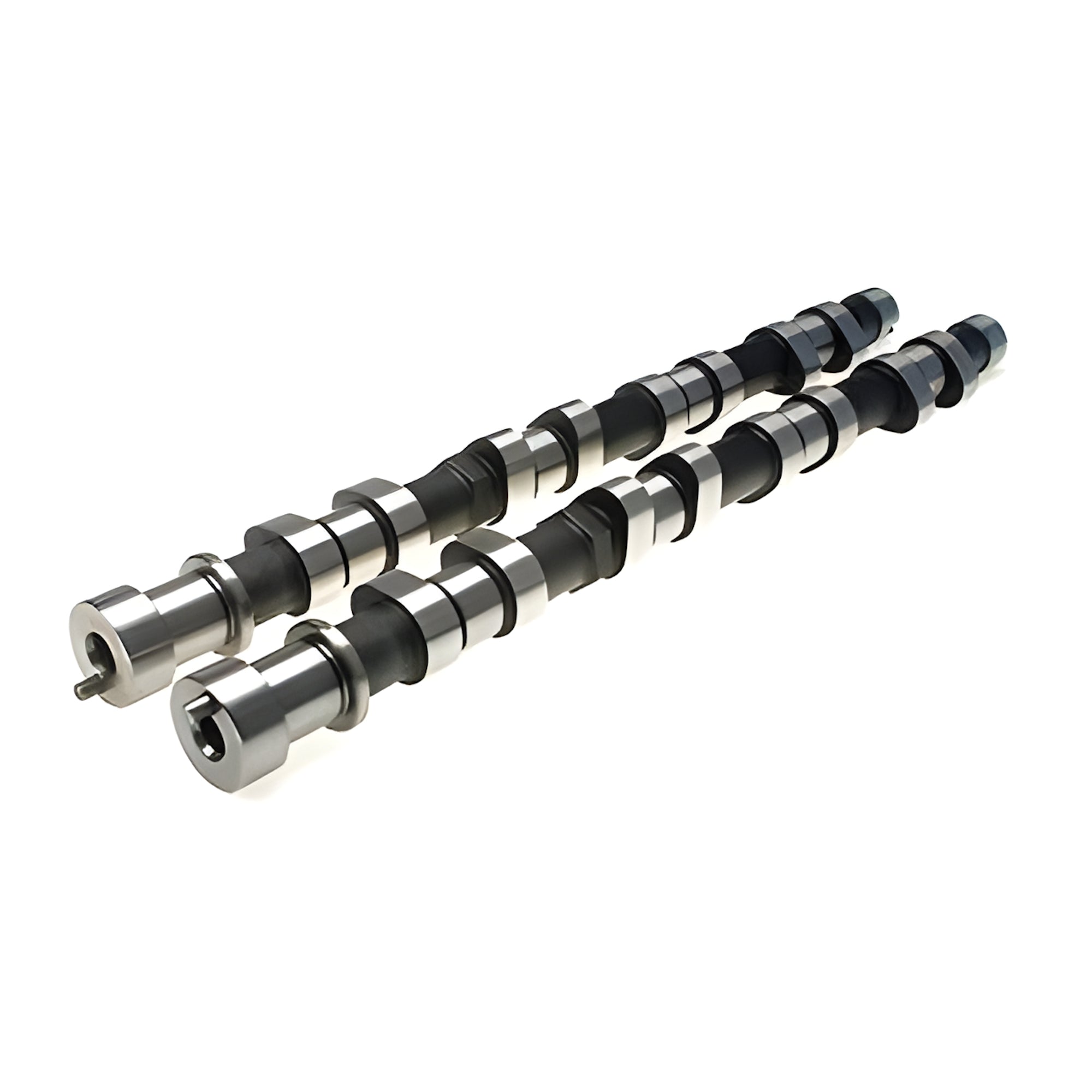

The Brian Crower Stage 2 Cams are a great upgrade for the SOHC D16Y8 found in the 1996-2000 Honda Civic. These camshafts provide the right amount of gains for both naturally aspirated or forced induction applications. These camshafts are meticulously crafted to extract maximum power and torque throughout the RPM range, with double-digit horsepower numbers an achievable reality. Each kit requires upgraded valvetrain components such as dual valve springs, retainers, and seats, with upgraded valve keepers recommended for peak performance. BC recommends their
BC0070
kit. Elevate your driving experience to unparalleled heights with the Brian Crower Stage 2 Camshafts and unleash the full potential of your D16Y8!
1996-2000 Honda Civic
Naturally Aspirated
Advertised Duration: Intake - 316 Degrees, Exhaust 308 Degrees
Actual Cam Lift: Intake - .435"/11.05mm, Exhaust .436"/11.07mm
Rocker Arm Ratio: Intake - 1.6:/1, Exhaust 1.8:1
Centerline: Intake - 106 Degrees, Exhaust 114 Degrees
Lobe Separation: 110 Degrees
Duration at 0.050" Cam: Intake - 235 Degrees, Exhaust - 224 Degrees
Duration at 0.050" Valve: Intake - 245 Degrees, Exhaust - 234 Degrees
Valve Clearance: Intake .006"/.15mm, Exhaust - .008"/.20mm
Camshaft Timing Open: Intake - 11.5 Degrees, Exhaust 46 Degrees
Camshaft Timing Closed: Intake - 43.5 Degrees, Exhaust 2 Degrees
Forced Induction
Advertised Duration: Intake - 310 Degrees, Exhaust 316 Degrees
Actual Cam Lift: Intake - .432"/10.97mm, Exhaust .424"/10.77mm
Rocker Arm Ratio: Intake - 1.6:/1, Exhaust 1.8:1
Centerline: Intake - 104 Degrees, Exhaust 112 Degrees
Lobe Separation: 108 Degrees
Duration at 0.050" Cam: Intake - 232 Degrees, Exhaust - 218 Degrees
Duration at 0.050" Valve: Intake - 242 Degrees, Exhaust - 228 Degrees
Valve Clearance: Intake .006"/.15mm, Exhaust - .008"/.20mm
Camshaft Timing Open: Intake - 12 Degrees, Exhaust 40 Degrees
Camshaft Timing Closed: Intake - 41 Degrees, Exhaust 3 Degrees
